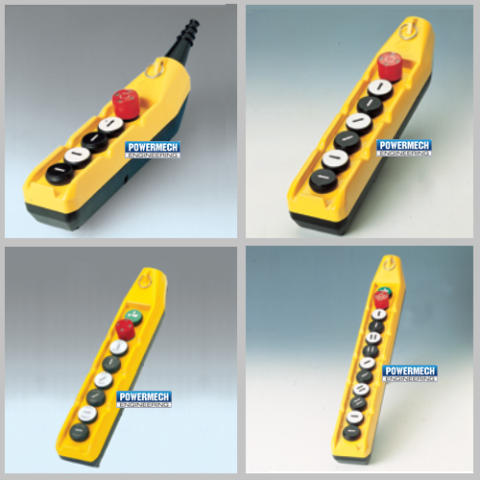

PL Type Pendant Push Button Station

Non-metallic cover of Tough, high impact strength, Good chemical strength, Non-toxic, Taint free, Double insulated enclosures in Thermoplastic Self-extinguishing material, Compact size, light & user friendly of Giovenzana International B.V. POWERMECH offers Giovenzana products which comply with both the European EN and the American UL standards. These regulations, such as the EN 60024 (with regards to the safety requirements of the electrical circuits on board industrial machinery), define the characteristics, performance and use of the products.

General Characteristics:

• Pendant stations PL Series are available in Single Row / Column
• Single and Dual Speed operation
• Number of buttons ranging from 5 push buttons (4 plus 1) up to 14 push buttons (12 plus 2) for Crane, hoist application, lifting platform, tails lift application and auxiliaries circuits
• Two directions mechanically interlocked in pair buttons
• IP-65 Double insulation IEC/EN60529
• Emergency stop EN IS0 13850 Mushroom Ø 30 turn to release
• In conformity to IEC / EN 60947-5-1, UNI EN 1570

Accessories for Pendant Push Button Stations:

• Emergency stop with vision
• Emergency stop Standard
• Stop button (Red)
• Start button (Green)
• Alarm / Start button
• Indication lamp
• Rotary selector switch in Two Position 0 – 1 and Three Position 1-0-2
• Key selector switch in Two Position 0 – 1 and Three Position 1-0-2
• Blank button (Black)
• Spare Push buttons for UP, DOWN, LEFT, RIGHT, FORWARD, REVERSE, Single and Dual speed Contact Blocks (NO plus NO) and Contact Blocks (NC).
