EOT Crane Cables
Powermech offers steel wire ropes embedded crane pendant cable and industrial crane power cables for EOT cranes, overhead cranes. Powermech supply Giovenzana cables which are of superior quality and internationally accepted and comply with CEI 20 – 22 II (flame resistant).
Pendant round cable with dual strain relief steel ropes S05VVD7-F is made for heavy duty applications for pendant push button stations and moving electromechanical components.
PVC Flat cable anti-aging H09VVH6-F is particularly suitable for supply and control circuits, lifting and handling equipment.

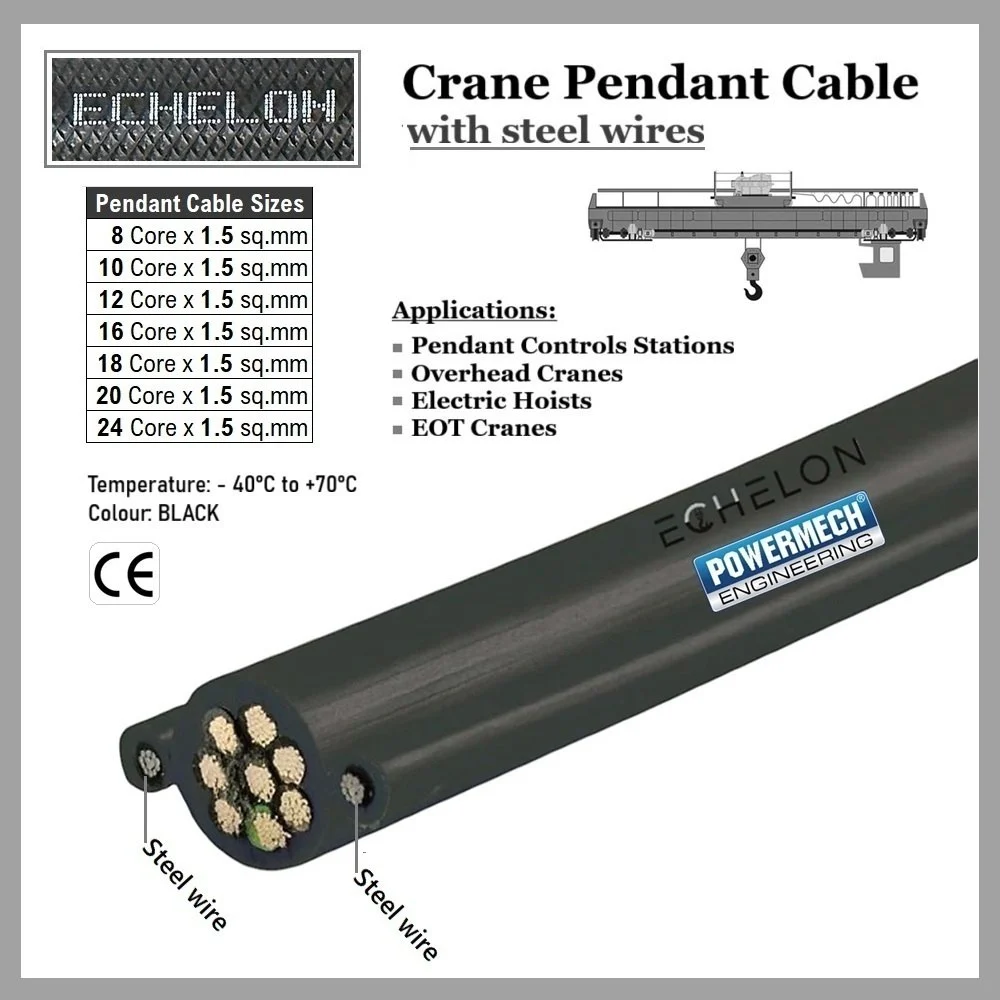

Crane Pendant Cable with Strain Wire
Product Details:
| Minimum Order Quantity | 50 Meter |
|---|---|
| Cable Type | Pendant Cable |
| Conductor Size | 1.5 sqmm |
| No Of Cores | As mentioned in attached data sheet. |
| Conductor Material | Copper |
| Insulation Material | PVC |
| Voltage Grade | 300/500 V |
| Brand | ECHELON |
| Made in | France |
| Applications | Hoists, EOT Cranes, Pendant control stations |
| Cable Type: | Steel wired Pendant cable |
| Color | BLACK |
| Product Type | Crane cable |
| Phone | 044 – 24715461, 044 – 42614058 |
| WA 99404 29288, 89250 66612, 89250 66613, 96771 25589 | |
| Make | ECHELON |
| Temperature range | – 40°C to +70°C |
| Number of Core | 4 to 24 core |
| PRICE | Price varies for cable size (Number of core x sq.mm) |
| Cable cross section | 1.5 sq.mm for all sizes of pendant cables. |
| Quotation | Submitted on receipt of enquiry by EMAIL or WhatsApp with Cable size, Quantity and Buyer’s address. |
| Warranty | One year. Conditions apply. |
| info@powermechengineering. com |
POWERMECH® offers Crane pendant cable with strain wire suitable for EOT cranes, pendant control stations, etc.,
| PENDANT CABLE (Core x Sq.mm) | Product Code | No.of Strands / Stand diameter | Max Nomiation Thickness of Insulation | Approximately Overall Diameter of Cable (in mm) | Max.DC Resistance at 20⁶C |
|---|---|---|---|---|---|
| 8 x 1.5 | EC08G15RB | 48 / 0.2 | 0.7 | 22.5 (12.7) | 13.3 |
| 10 x 1.5 | EC10G15RB | 48 / 0.2 | 0.7 | 25 (13.2) | 13.3 |
| 12 x 1.5 | EC12G15RB | 48 / 0.2 | 0.7 | 27.3 (15.3) | 13.3 |
| 16 x 1.5 | EC16G15RB | 48 / 0.2 | 0.7 | 29.0 (17.0) | 13.3 |
| 18 x 1.5 | EC18G15RB | 48 / 0.2 | 0.7 | 30.5 (17.5) | 13.3 |
| 20 x 1.5 | EC20G15RB | 48 / 0.2 | 0.7 | 31.5 (18.0) | 13.3 |
| 24 x 1.5 | EC24G15RB | 48 / 0.2 | 0.7 | 33.0 (20.0) | 13.3 |
Additional Information:
- Delivery Time: Immediate
- Packaging Details: Custom packing: 50 meters onwards. Standard Drum packing: 500 and 1000 meters.
Crane flat Traveling Cable
Product Details:
| Minimum Order Quantity | 50 Meter |
|---|---|
| Number of Core | 4, 8, 12, 16, 18, 24 cores |
| Insulation Class | PVC T12 according to EN 50363 PART 3 |
| Brand | ECHELON |
| Make | ECHELON |
| Made In | France |
| Temperature Range | -40°C to +70°C |
| Jacket | PVC TM2 ACCORDING TO EN 50363-4-1 |
| Sq.mm | 1.5, 2.5, 4 and 6 sq.mm |
| Applications | Hoists, EOT Cranes, Material handling equipment, Festoon systems, Beam cable trolleys, C-track etc. |
| Supporting Element | Galvanized round steel wires |
| Conductor | Multi stranded copper conductor as per DIN EN 60228 |
| Phone | 044 – 24715461, 044 – 42614058 |
| WA 99404 29288, 89250 66612, 89250 66613, 96771 25589 | |
| Price | Price varies as per cable size (No. of Core) and Cross Section (Sq.mm). |
| Colour | BLACK |
| Quotation | Submitted on receipt of enquiry by E-mail or WhatsApp with Cable Size, Quantity and Buyer’s Address. |
| Warranty | One Year. Conditions Apply. |
| info@powermechengineering.com |
| Flat Cable Size | Product Code | Strands / Insulation / Overall Dia. (mm) |
|---|---|---|
| 4 x 1.5 | EC04G15FB | 80/0.152 nos/mm; 0.8mm; Min 17.0x6.0 - Max 19.0x8.0 |
| 8 x 1.5 | EC08G15FB | 80/0.152 nos/mm; 0.8mm; Min 30.0x6.0 - Max 33.0x8.0 |
| 12 x 1.5 | EC12G15FB | 80/0.152 nos/mm; 0.8mm; Min 42.0x5.0 - Max 45.0x7.0 |
| 16 x 1.5 | EC16G15FB | 80/0.152 nos/mm; 0.8mm; Min 54.0x8.0 - Max 54.0x8.0 |
| 18 x 1.5 | EC18G15FB | 80/0.152 nos/mm; 0.8mm; Min 43.0x11.0 - Max 43.0x11.0 |
| 24 x 1.5 | EC24G15FB | 80/0.152 nos/mm; 0.8mm; Min 51.0x13.0 - Max 51.0x13.0 |
| 4 x 2.5 | EC04G25FB | 135/0.152 nos/mm; 0.8mm; Min 19.0x7.0 - Max 22.0x9.0 |
| 8 x 2.5 | EC08G25FB | 135/0.152 nos/mm; 0.8mm; Min 35.0x5.0 - Max 38.0x7.0 |
| 12 x 2.5 | EC12G25FB | 135/0.152 nos/mm; 0.8mm; Min 49.5x6.5 - Max 52.5x8.5 |
| 16 x 2.5 | EC16G25FB | 135/0.152 nos/mm; 0.8mm; Min 41.0x13.0 - Max 41.0x13.0 |
| 18 x 2.5 | EC18G25FB | 135/0.152 nos/mm; 0.8mm; Min 50.0x13.0 - Max 50.0x13.0 |
| 24 x 2.5 | EC24G25FB | 135/0.152 nos/mm; 0.8mm; Min 54.0x13.0 - Max 54.0x13.0 |
| 4 x 4.0 | EC04G04FB | 224/0.152 nos/mm; 0.8mm; Min 21.0x7.5 - Max 21.0x7.5 |
| 8 x 4.0 | EC08G04FB | 35x5 nos/mm; 0.8mm; Min 38.0x5.0 - Max 38.0x5.0 |
Additional Information:
- Delivery Time: Immediate
- Packaging Details: Custom Packing: 50 meters onwards. Standard Drum Packing: 500 and 1000 meters.
Steel Wire Ropes Embedded Crane Pendant Cable
Product Details:
| Suitable For | Overhead cranes, EOT cranes, Gantry cranes, Jib cranes, Electric wire rope hoists, Pendant stations. |
|---|---|
| Brand | GIOVENZANA |
| Shape | Round. |
| Usage/Application | Overhead Cranes |
| Weight Kg | Mentioned in attached catalog. |
| Application | EOT Cranes,Pendant push button stations and moving electromechanical components. |
| Quality | Comply with CEI 20 - 22 II (flame resistant) |
| Insulation class | 2/3 |
| Operational voltage | 300/500V |
| Sheathing colour | Black |
| Internal conductors | with flexible PVC Sheathing progressively numbered,plus earth conductor (yellow/green) |
| Steel wire size | 2mm dia steel wire |
| Breaking point | 60 kg/mmq |
| Price | Price shall vary depending on the size of cable. |
| Made in | Italy |
| Deliver period | Usually within a week for standard sizes. |
| info@powermechengineering.com (Note: Quotation will be submitted on receipt of Email enquiry). | |
| Country of Source | Made in Italy |
| +91 9940429288, 8925066613, 9677125589 |
EOT Crane Round Pendant Cable with dual strain relief steel wires – S05VVD7-F
POWERMECH offers round cable with dual strain relief steel wires for pendant push button control station. Round cable is made for heavy duty applications in particular for pendant push button stations and moving electromechanical components. The two steel wire ropes are embedded, diametrically opposed to PVC sheathing. The rope cut into lengths and just hooked the steering control to avoid any stress on the cable.
Crane Pendant round cable range: Available from 8 Core up to 24 core in 1.5 sq.mm and 5 core in 1 sq.mm as below:
| Pendant Cable Part Number / Code | No. of Core / Conductors | Cross Section | Outer Diameter (in mm) Approx. | Strain relief wire rope dimension | Strand [N/mm] |
|---|---|---|---|---|---|
| CT0815UAFN | 8 Core | 1.5 mm | 11.6 | 23.6 | 30X0.25 |
| CT1215UAFN | 12 Core | 1.5 mm | 14.4 | 26.4 | |
| CT1615UAFN | 16 Core | 1.5 mm | 16 | 28 | |
| CT1815UAFN | 18 Core | 1.5 mm | 17 | 29 | |
| CT2015UAFN | 20 Core | 1.5 mm | 18 | 30 | |
| CT2415UAFN | 24 Core | 1.5 mm | 21 | 33 |
Specifications:
2mm steel wires
Insulation class 2/3
Sheathing colour is Black
Breaking point: 60 kg/mmq
Comply with CEI 20 – 22 II (Flame resistant).
For more details, please view the attached catalogue below.
Additional Information:
- Delivery Time: Usually within a week.
Steel Wired EOT Crane Pendant Control Cable
Product Details:
| Minimum Order Quantity | 50 Meter |
|---|---|
| Model Name/Number | Pendant Cable |
| Cable Type | Steel wired Pendant cable |
| Size/Dimension | From 8 Core up to 24 Core in 1.5 Sq. mm in BLACK Colour |
| Product Type | Crane cable |
| Usage/Application | EOT Cranes,Gantry Cranes,Overhead Cranes,Pendant Push Button Stations and Hoists |
| Max Load Capacity | 60 kg/mmq (Breaking Point) |
| Color | BLACK |
| Flame Test | Comply with CEI 20 - 22 II (Flame Resistant) |
| Voltage V | Operational Voltage 300/500V |
| Brand | GIOVENZANA |
| info@powermechengineering.com (Note: Quotation will be submitted on receipt of Email enquiry). | |
| +91 9940429288, 8925066613, 9677125589 | |
| Country of Source | Made in Italy |
EOT Crane Pendant Round Control Cable with dual strain relief steel wires – S05VVD7-F
POWERMECH offers pendant cable with dual strain relief steel wires for pendant push button control station. Round pendant cable is made for heavy duty applications for Electric Hoists and EOT Cranes, Gantry Cranes pendant push button stations and moving electromechanical components. The two steel wire ropes are embedded, diametrically opposed to PVC sheathing. The rope cut into lengths and just hooked the steering control to avoid any stress on the cable.
Crane Pendant round cable range: Available from 8Core up to 24Core in 1.5sq.mm as below:
| Pendant Cable Part Number / Code | No. of Core / Conductors | Cross Section | Outer Diameter (in mm) Approx. | Strain relief wire rope dimension | Strand [N/mm] |
|---|---|---|---|---|---|
| CT0815UAFN | 8 Core | 1.5 mm | 11.6 | 23.6 | 30X0.25 |
| CT1215UAFN | 12 Core | 1.5 mm | 14.4 | 26.4 | |
| CT1615UAFN | 16 Core | 1.5 mm | 16 | 28 | |
| CT1815UAFN | 18 Core | 1.5 mm | 17 | 29 | |
| CT2015UAFN | 20 Core | 1.5 mm | 18 | 30 | |
| CT2415UAFN | 24 Core | 1.5 mm | 21 | 33 |
Specifications:
2mm steel wires
Insulation class 2/3
Sheathing colour is Black
Breaking point: 60 kg/mmq
Comply with CEI 20 – 22 II (Flame resistant).
For more details, please view the attached catalogue below.
Additional Information:
- Delivery Time: One week
Industrial Crane Power Cable
Product Details:
| Minimum Order Quantity | 50 Meter |
|---|---|
| Temperature | -5degc to 70degc |
| Usage/Application | EOT Crane,Material Handling,Festoon,Galvanizing / Phosphating Process Plant,Transfer Car |
| Power/Voltage | 450 V - 750 |
| Duty Appliication | Industrial application only. Not for General or Commercial or Residential |
| Colour | Black |
| Number Of Cores | From 4 core up to 24 core |
| Application | Cranes,hoists,lifting equipment,material handling equipment,powder coating or painting plant |
| Shape | Flat |
| Size | 1.5 mm up to 35 mm |
| Length | Cable Is Supplied In Full Spools As Well Per Meter Basis. |
| Material | Flame Resistant Material |
| Insulating Material | PVC |
| Brand | GIOVENZANA |
| info@powermechengineering.com (Note: Quotation will be submitted on receipt of Email enquiry). | |
| +91 9940429288, 8925066613, 9677125589 | |
| Country of Source | Made in Italy |
Powermech supply Flat festoon cable suitable for Supply and Control circuits, Lifting Equipment, Cranes, Electric Hoists, Conveyors and other material handling equipment, Track System, Robots, Liquid painting plants, Transport dip pre-treatment plants. PVC Flat electric cable is oil and chemical resistant, can also be used continuous flexing applications, indoor and outdoor application. Recommended bend radius is three to five times of cable diameter.
Festoon Flat cable range is supplied in following sizes.
| Flat Cable Part Number / Code | Number of Core | Cross Section |
|---|---|---|
| CP0415AFN | 4 Core | 1.5 mm |
| CP0815AFN | 8 Core | 1.5 mm |
| CP1215AFN | 12 Core | 1.5 mm |
| CP1615AFN | 16 Core | 1.5 mm |
| CP1815AFN | 18 Core | 1.5 mm |
| CP2415AFN | 24 Core | 1.5 mm |
| CP0425AFN | 4 Core | 2.5 mm |
| CP0825AFN | 8 Core | 2.5 mm |
| CP1225AFN | 12 Core | 2.5 mm |
| CP1625AFN | 16 Core | 2.5 mm |
| CP1825AFN | 18 Core | 2.5 mm |
| CP2425AFN | 24 Core | 2.5 mm |
| CP0404AFN | 4 Core | 4 mm |
| CP0804AFN | 8 Core | 4 mm |
| CP0406AFN | 4 Core | 6 mm |
| CP0806AFN | 8 Core | 6 mm |
| CP0410AFN | 4 Core | 10 mm |
| CP0416AFN | 4 Core | 16 mm |
| CP04250AFN | 4 Core | 25 mm |
| CP0435AFN | 4 Core | 35 mm |
Additional Information:
- Delivery Time: Immediate
Lapp Flat Festoon Cable
Approx. Rs 980 / Meter
Product Details:
| Minimum Order Quantity | 100 Meter |
|---|---|
| Voltage Grade | 300/500 V |
| Core Count | 4, 5, 7, 8, 10, 12 Cores |
| Conductor Material | Copper |
| Series | ÖLFLEX |
| Cable Standard | LAPP Specification |
| Price | Varies based on cable size and type. |
POWERMECH offers LAPP flat festoon cables suitable for outdoor cable trolley applications. Other applications include power chains and lift applications.
Additional Information:
- Delivery Time: Varies as per availability.
