125A Safetrack Current Collector
Approx RS 2,600 / Number
| Usage/Application | Busbar |
|---|---|
| Material | Copper |
| Features | Supplied with cable as per standard or required length |
| Brand | SAFETRACK |
| Cable Length | 1.4 meter length. Cable size: 1 Core x 10 Sq.mm. 1100V. On request for 3 meter and 5 meter length. |
| Model Name/Number | MACC 125 |
| Joint Type | Suitable for PIN and BOLTED type joint |
| Current Rating | 125Amps & 100Amps |
| Current collector spares: | Copper contact shoe, shoe holder, Upper bracket with pin, Spring, Mounting bracket are supplied. |
| Price | Prices varies depending of Model, Current rating and Cable length |
| +91 9940429288, 8925066613, 9677125589 | |
| info@powermechengineering.com (Note: Quotation will be submitted on receipt of Email enquiry). | |
| Suitable for | DSL Shrouded Busbar Conductor System |
| Weight | 1.20 kg (approximately) |
| Application/Usage | Busbar, EOT cranes, monorail hoists, transfer cars, electric trolleys, bus trucking, amusement parks, etc. |
| Country of Origin | Made in India |

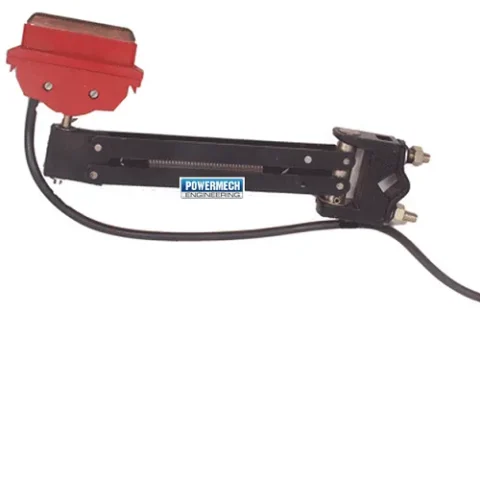

POWERMECH offers Genuine SAFETRACK DSL Current Collector assembly consists of a spring loaded sliding contact type shoe of sintered copper graphite. Heavy duty double arm current collector provides multi axis degree of flexible movement. Exposed parts of current collectors shall be grounded and of corrosion-resistant material. Current collector assembly shall be designed to operate through gaps, splices, switches and shall be self centring.
Current Collector Assembly, Model / Type MACC 125, with 10sq.mm x 1.4meter length cable / 3meter / 5 meter, as required, for Safetrack DSL Shrouded bus bar system.

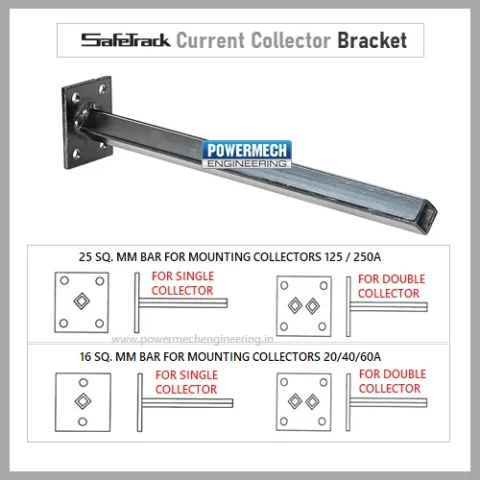

For purchase of every 4 Numbers of Safetrack Current collectors, 1 Nos. of Bracket is supplied free of charges.

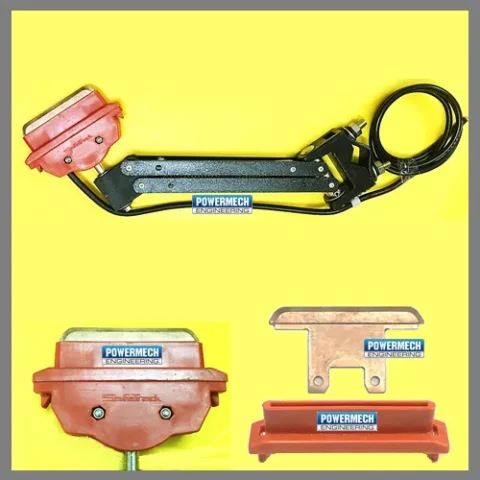

Copper Shoes (or) Copper Shoe with holder is also supplied as a spare component for SAFETRACK DSL Current Collector assembly.
| Type | MACC 125 |
|---|---|
| Current Rating | 125A |
| Collector movement | Vertical +200 , Horizontal +60 |
| Mounting Bracket | 25sqmm bar |
| Mounting distance from Conductor Contact surface |
127mm |
| Construction | 1 Pole |
| Spring loaded contacts with springs of non-rusting |
Stainless steel |
| Sintered copper shoe | 125A |
| Shoe Holder | Nylon |
| Structure | Metallic |
| Suitable to use on Safetrack Conductor system | on straight Track SF1(100A/125A/250A/315A) SF2(60A/100A/125A/160A/250A/400A/200A/ 315A) SF3(500A/800A/100A) |
| On curved track SF1(100A/125A/250A/315A) SF2(60A/100A/125A/160A/250A/400A) |
|
| Higher currents | Two Collectors in tandem to be used for Higher Current requirements and Expansion assemblies |
Additional Information:
- Delivery Time: Immediate
- Packaging Details: Corrugated Box or Wooden Box depending on quantity.
