14.125 Type Emco Simplatroll Clutch Brake
PRODUCT DETAILS :
| Voltage | 24 VDC or As per order |
| Brand | Emco Simplatroll |
| Model Name/Number | 14.125 |
| Torque Range | Torque: From 7.5 Nm up to 1250 Nm |
| Design | 14.125 Encased Body,Type Foot or Flange Mounted |
| Usage/Application | Machine tools,Packaging machines,Welding machines,Conveyors,etc. |
| +91 9940429288, 8925066613, 9677125589 | |
| Note: | Price shall vary depending on Size,Torque,Voltage,and Model. |
| Price | Price shall vary depending on Size,Torque,Voltage,and Model. |
| Country of Origin | Made in India |

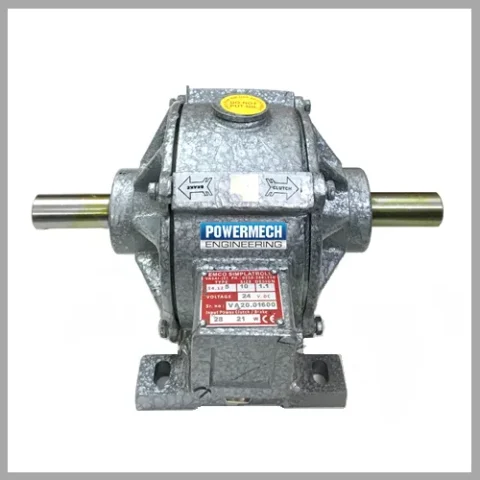

EMCO SIMPLATROLL FOOT / FLANGE MOUNTED CLUTCH BRAKE COMBINATION Type 14.125
Type 14.125 Electromagnetic Clutch and Brake combination can be used for continuous start stop function in any drive transmission arrangement of any machine or mechanism. The standard unit comes with an input and output shaft which can be coupled with any other input and output shaft or other items.
Also, Flange mounted option for either input or output or both is available and hollow shaft instead of solid shaft in input or output or both is also available which facilitates an outside driving or driven shaft to be inserted inside the unit.
FEATURES:
• Torque in 7.5 to 1250 Nm.
• Simple to Fit.
• Ready inn Assembled Form
• Strong Bearing Design.
• Totally Encased Unit.
• Air Gap Adjustable Without Dismantling.
• Good Heat Dissipation
• High Operating Frequency.
• Long Life.
• Single Plate Dry Type.
• Slotted Armature for Torque Stability.
• Fast Switching Times.
• Coil with Class “F” Insulation.
• High Operating Reliability.
• Special Friction Disc
• Stationery Field (No. Slip Rings).
• Low Inertia of Rotating parts.
• Consistent Operating Characteristics.
Application: Machine tools, Special purpose machines, Packaging machines, Conveyors, Welding machines.
