Conductor Bar
Approx RS 1,200 / Meter
PRODUCT DETAILS :
| Minimum Order Quantity | 20 Meter |
| Color | Red,Yellow,Blue and Green |
| Email: | info@powermechengineering.com (Note: Quotation will be submitted on receipt of Email enquiry). |
| +91 9940429288, 8925066613, 9677125589 | |
| Usage | EOT Cranes,Hoists,Monorail Transfer Cars,Electric trolleys,Bus trucking,Amusement Parks |
| Country of Origin | Made in India |
POWERMECH offers Original Spare Conductor Bars Red, Yellow, Blue and Green for DSL Shrouded / Insulated Conductor Bar System Model Safeline M Safeline W as per current rating given below:
| DSL Conductor Busbar Type | Conductor Bar Current Rating in Amps | Conductor Joint type | Conductor Bar Material |
| Safeline W | 60A, 100A and 125A | Bolted Joint | G.I. (Galvanised Steel) |
| Safeline W | 160A, 200A and 400A | Bolted Joint | Copper |
| Safeline W | 160A and 250A | Bolted Joint | Copper (Red, Yellow, Blue) and Green in G.I. |
| Safeline W | 200A and 315A | Bolted Joint | Aluminium / Stainless Steel |
| Safeline W | 400A | Bolted Joint | Copper (Red, Yellow, Blue) and Green in Aluminium/ Stainless Steel |
| DSL Conductor Busbar ype | Conductor Bar Current Rating in Amps | Conductor Joint type | Conductor Bar Material |
| Safeline M | 100A and 125A | Pin Joint | G.I. (Galvanised Steel) |
| Safeline M | 250A & 315A | Pin Joint | Copper |
| Safeline M | 250A and 315A | Pin Joint | Copper (Red, Yellow, Blue) and Green in G.I. |
Also, other following DSL Busbar Components are supplied:

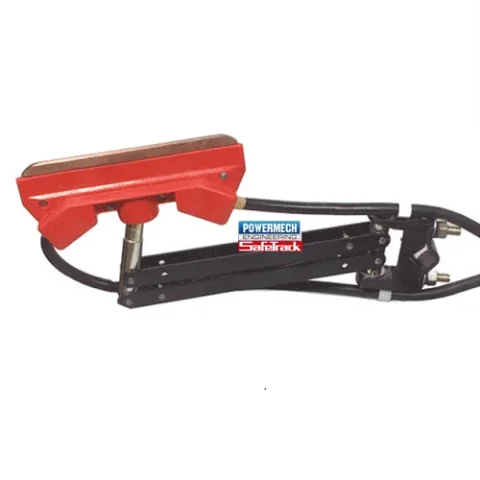

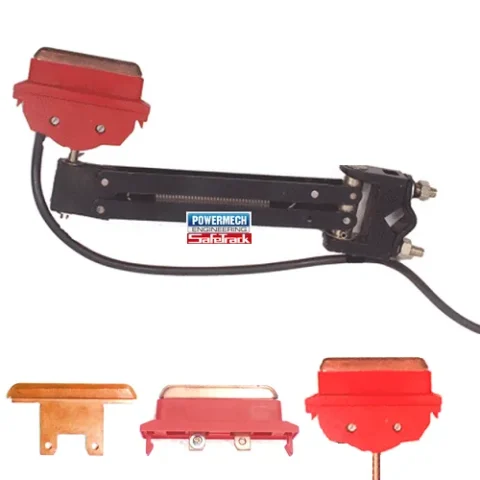

- Current Collector Assembly
- Copper Shoe for Current Collector
- Copper Shoe with Holder for Current Collector

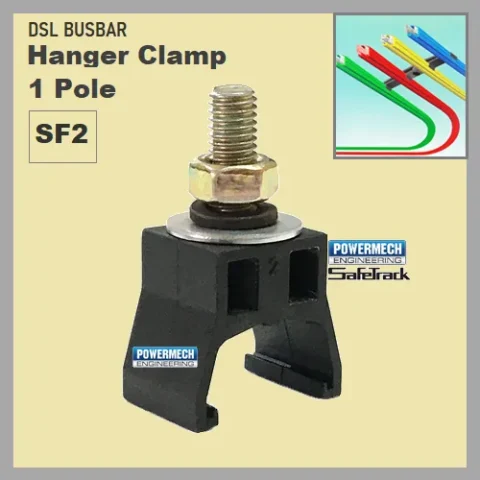

- Bus bar Support Hanger Clamp
- Anchor Clamp
- Steel Joint
- Copper Joint
- End Power Feed
- Power Feed & Cover
- Joint Cover
- Web Support Bracket
