DSL Support Web Bracket L Angle

Approx RS 250 / Piece

PRODUCT DETAILS :

Minimum Order Quantity	20 Piece
Brand	SAFETRACK
Size	Standard Size: 40 x 40 x 5 – 450 mm,with 4 Slots. Other sizes are on request.
Shape	L Shaped
Finish	Red Oxide Primered Finish
Weight	1.35 kgs (approximately)
Minimum Order Quantity	20 Nos.
Materials	Steel
Application	DSL Shrouded Conductor Bus bar,SAFETRACK SF1,SF2,SF3 & SFS. EOT Crane,Hoist,Transfer Car,etc.
Email	info@powermechengineering.com (Note: Quotation will be submitted on receipt of Email enquiry).
Price	Price varies depending on size and model.
WhatsApp	+91 9940429288,8925066613,9677125589
Country of Origin	Made in India

Powermech supply L type Support bracket / Web Bracket for Shrouded DSL conductor busbar system.

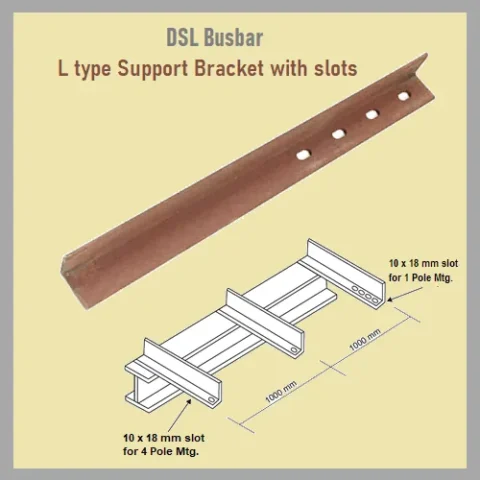

The usual spacing is 1000 mm (1 meter). But it is recommended to locate Support Bracket at a spacing that is divisible into the conductor bar lengths. This will always ensure that the joint positions do not interfere with the support brackets.

It is important to ensure all brackets are aligned in horizontal and vertical plane.

For Single Pole Hanger Clamp, the Support Bracket has 4 Slots and the slot size is 10 x 18 mm.

For Four Pole Hanger Clamp, the Support Bracket has 1 Slot and the slot size is 10 x 18 mm.

Support Brackets are supplied as per Model / Type of Safetrack Shrouded DSL Conductor Busbar System:

Safetrack Model / Type	Support Web Bracket L Shaped Angle Size
SFS	40 x 40 x 5 – 300 mm, with 2 Holes
SF1/SF2	40 x 40 x 5 – 350 mm, with 4 Slots
SF1/SF2	40 x 40 x 5 – 450 mm, with 4 Slots
SF1/SF2	40 x 40 x 5 – 400 mm, with 2 Slots
SF3	40 x 40 x 5 – 650 mm, with 4 Slots
SF3	50 x 50 x 6 – 650 mm, with 4 Slots
