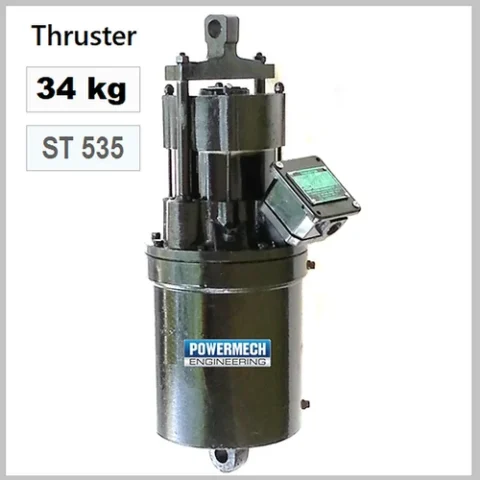

Electro Hydraulic Thrustor Brake with 34 kg Thruster
Approx RS 18,000 / Piece
Product Details:
| Minimum Order Quantity | 1 Piece |
|---|---|
| Usage/Application | Eot Crane |
| Brand | POWERMECH |
| Type | Electro Hydraulic Thruster Brake Mill Duty Type (MDT) with Cast Iron Body Thruster 34 kgs |
| MODEL | MDT 200-34,MDT 250-34,MDT 300-34 and MDT 400-34 |
| Application | EOT Crane,Overhead Crane,Gantry Crane,Moving machinery and Electric hoists. |
| Supply | AC Supply,400 / 440 Volts,3 Phase,50 C/s |
| Brake lining | Self Adjusting lining wear mechanism |
| Dimensions | given in PFF attachment |
| Email: | info@powermechengineering.com (Note: Quotation will be submitted on receipt of Email enquiry). |
| +91 9940429288, 8925066613, 9677125589 |

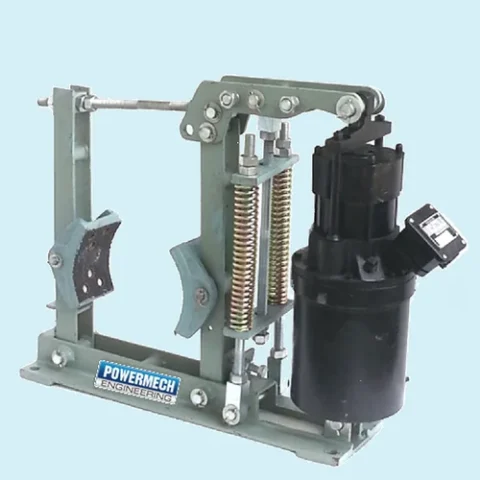

MILL DUTY THRUSTOR (MDT) BRAKES WITH CAST IRON BODY 34kg THRUSTERS
Electro Hydraulic Thruster Brake is used to retard the speed of moving machinery and to stop it accurately to the desired position. The breaking force is applied to the brake shoes by a pre stressed compression spring.
| Thruster brake Brake Model | Drum Diameter (mm) | Thrustor Capacity (Kgs.) | Thrustor Stroke (mm) | Braking Torque (Kg-m) |
|---|---|---|---|---|
| MDT 200-34 | 200 | 34 | 51 | 32 |
| MDT 250-34 | 250 | 34 | 51 | 42 |
| MDT 300-34 | 300 | 34 | 51 | 62 |
| MDT 400-34 | 400 | 34 | 51 | 90 |
NOTE: Price shall vary for each model / type, specifications and other terms. to get quotation for the required product.

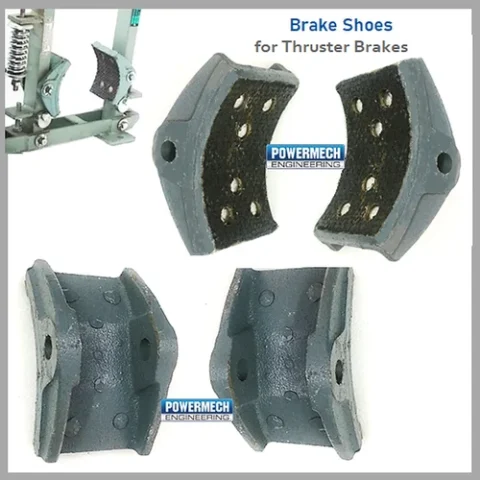

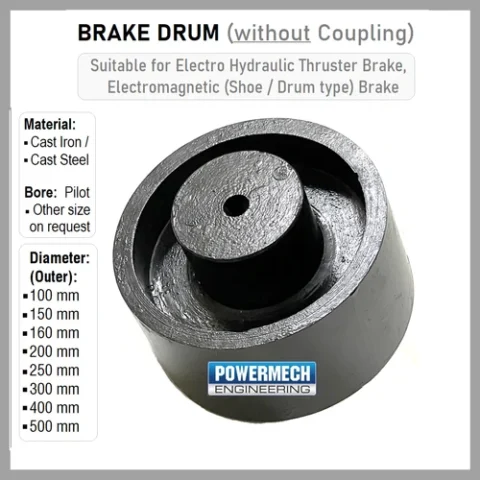

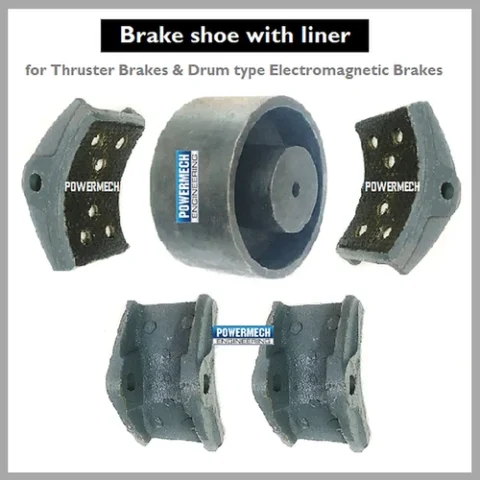

In addition, Thruster of 46kgs, 68kgs, 114kgs are also supplied suitable for other size of brake drum given below. Spare brake shoe with liner, brake drum with coupling is supplied on request.
| Thruster brake Brake Model | Drum Diameter (mm) | Thrustor Capacity (Kgs.) | Thrustor Stroke (mm) | Braking Torque (Kg-m) |
|---|---|---|---|---|
| MDT 400-46 | 400 | 46 | 51 | 110 |
| MDT 500-46 | 500 | 46 | 51 | 190 |
| MDT 400-68 | 400 | 68 | 76 | 170 |
| MDT 500-68 | 500 | 68 | 76 | 290 |
| MDT 600-68 | 600 | 68 | 76 | 350 |
| MDT 500-114 | 500 | 114 | 76 | 485 |
| MDT 600-114 | 600 | 114 | 76 | 580 |
Additional Information:
- Delivery Time: Immediate up to 250mm dia thruster brake
