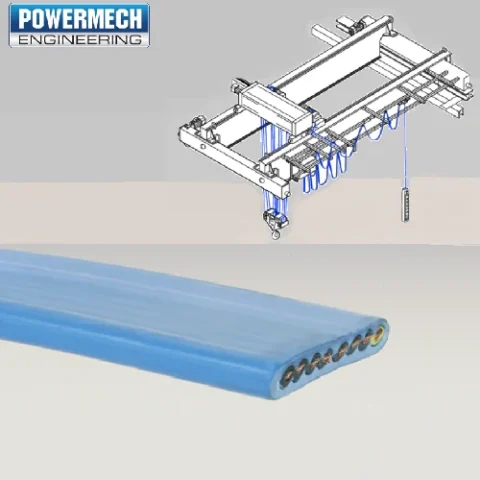

EOT Crane Festoon Flat Cable

POWERMECH is the leading supplier of Festoon Flat cable used in Elevator, Lift, Cranes, hoists, Festoon systems, Conveyors and control circuits, material handling equipment and transporter system.

The Flat festoon cable is particularly suitable for supply and control circuits, lifting equipments, Cranes, Electric hoists and other material handling equipments, Liquid painting plants, Transport dip pre-treatment plants. PVC Flat electric cable is oil and chemical resistant, can also be used continuous flexing applications, indoor and outdoor application. Recommended bend radius is three to five times of cable diameter.

Applications: Festooning systems, Lifting equipments, track system, Cranes, hoists, conveyors, robots, supply and control circuits etc.

Festoon Flat cable range: Available from 4 Core up to 24 Core and 1.5 sq. mm to 35 sq. mm.

•  1.5 sq.mm x 4 core (up to 24 Core)
•  2.5 sq.mm x 4 core (up to 24 Core)
•  4 sq.mm x 4 core (up to 8 Core)
•  6 sq.mm x 4 core (up to 8 Core)
•  10 sq.mm x 4 core
•  16 sq.mm x 4 core
•  25 sq.mm x 4 core
•  35 sq.mm x 4 core

Cable is supplied in full spools as well as per meter basis.

Specifications:

•  Sheathing colour is black
•  Operating temperature -5 °C +70 °C
•  Operational voltage 450/750V
•  Internal conductors with flexible PVC sheathing progressively numbered, plus earth conductor (yellow/green)
•  Insulation class 2/3
•  Comply with CEI 20 – 22 II (flame resistant)

* On request the same cables can be supplied – minimum requirement is 500 meters – with heat resistant upto 105° tinned red copper shield.

For more details, please view the attached catalogue below.
