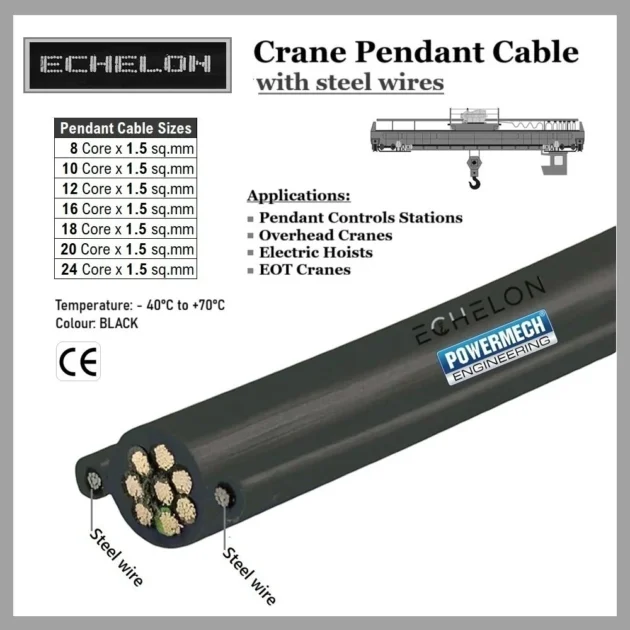

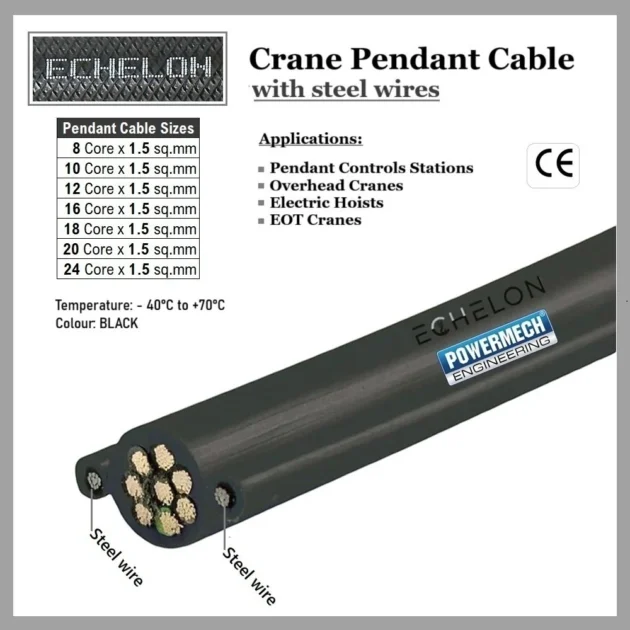

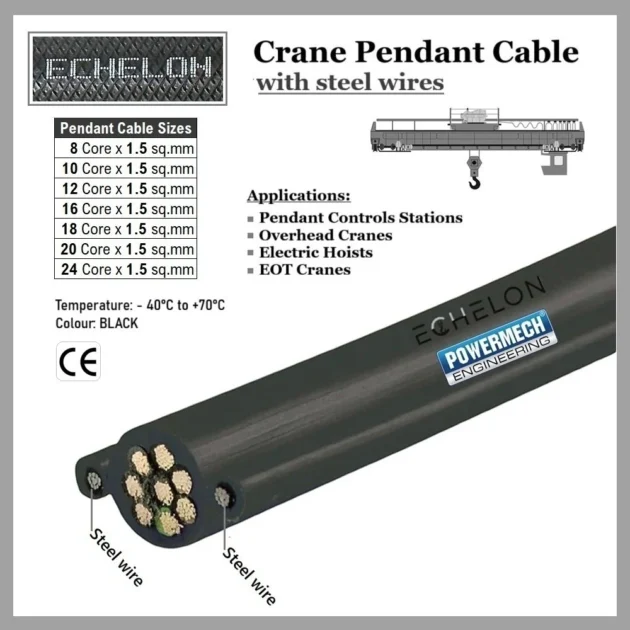

Crane Pendant Cable with Strain Wire
Approx. Rs 250 / MeterGet
| Minimum Order Quantity | 50 Meter |
| Cable Type | Pendant Cable |
| Conductor Size | 1.5 sqmm |
| No Of Cores | As mentioned in attached data sheet. |
| Conductor Material | Copper |
| Insulation Material | PVC |
| Voltage Grade | 300/500 V |
| Brand | ECHELON |
| Made in | France |
| Applications | Hoists, EOT Cranes, Pendant control stations |
| Cable Type: | Steel wired Pendant cable |
| Color | BLACK |
| Product Type | Crane cable |
| Phone | 044 – 24715461, 044 – 42614058 |
| WA 99404 29288, 89250 66612, 89250 66613, 96771 25589 | |
| Make | ECHELON |
| Temperature range | – 40°C to +70°C |
| Number of Core | 4 to 24 core |
| PRICE | Price varies for cable size (Number of core x sq.mm) |
| Cable cross section | 1.5 sq.mm for all sizes of pendant cables. |
| Quotation | Submitted on receipt of enquiry by EMAIL or WhatsApp with Cable size, Quantity and Buyer’s address. |
| Warranty | One year. Conditions apply. |
| info@powermechengineering. com |
POWERMECH® offers Crane pendant cable with strain wire suitable for EOT cranes, pendant control stations, etc.,
| PENDANT CABLE (Core x Sq.mm) | Product Code | No.of Strands / Stand diameter Max | Nomiation Thickness of Insulation | Approximately Overall Diameter of Cable (in mm) | Max.DC Resistance at 20⁰C |
|---|---|---|---|---|---|
| 8 x 1.5 | EC08G15RB | 48 / 0.2 | 0.7 | 22.5 (12.7) | 13.3 |
| 10 x 1.5 | EC10G15RB | 48 / 0.2 | 0.7 | 25 (13.2) | 13.3 |
| 12 x 1.5 | EC12G15RB | 48 / 0.2 | 0.7 | 27.3 (15.3) | 13.3 |
| 16 x 1.5 | EC16G15RB | 48 / 0.2 | 0.7 | 29.0 (17.0) | 13.3 |
| 18 x 1.5 | EC18G15RB | 48 / 0.2 | 0.7 | 30.5 (17.5) | 13.3 |
| 20 x 1.5 | EC20G15RB | 48 / 0.2 | 0.7 | 31.5 (18.0) | 13.3 |
| 24 x 1.5 | EC24G15RB | 48 / 0.2 | 0.7 | 33.0 (20.0) | 13.3 |
Additional Information
- Delivery Time: Immediate
- Packaging Details: Custom packing: 50 meters onwards. Standard Drum packing: 500 and 1000 meters.
